1. Introduction of main machine assemblies of carton packaging production line:

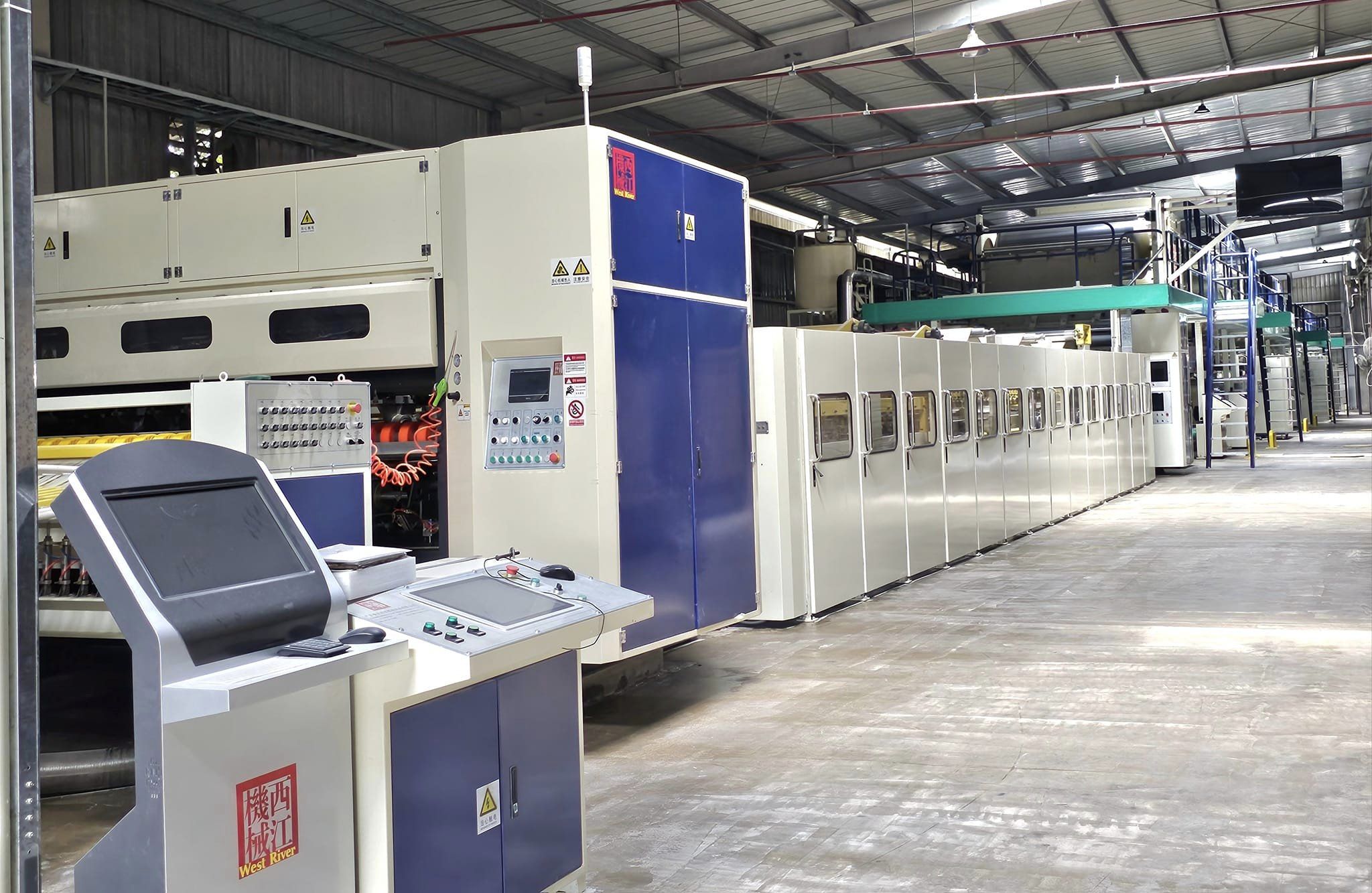

The multifunctional 3.5.7 layer carton packaging production line is combined by the following main machine clusters: Roller Lifting Rack, Face Paper Thermal Drying Lot, Corrugated Paper Thermal Drying Lot, Serial Machine Automatic Paper, Single Sided Corrugated Laminating Machine, Conveyor Bridge, Multi-stage Heat Drying Lot, Glue Binding Machine, Drying Truss, Slitting Machine, Sheet Cutting machine, Automatic Paper Making and Stacking machine, production system compatibility, and electrical control system etc …….
Paper output speed: 100 - 300m / min.
Paper width: 1200–2800mm.
Length of the whole line: 65-130m

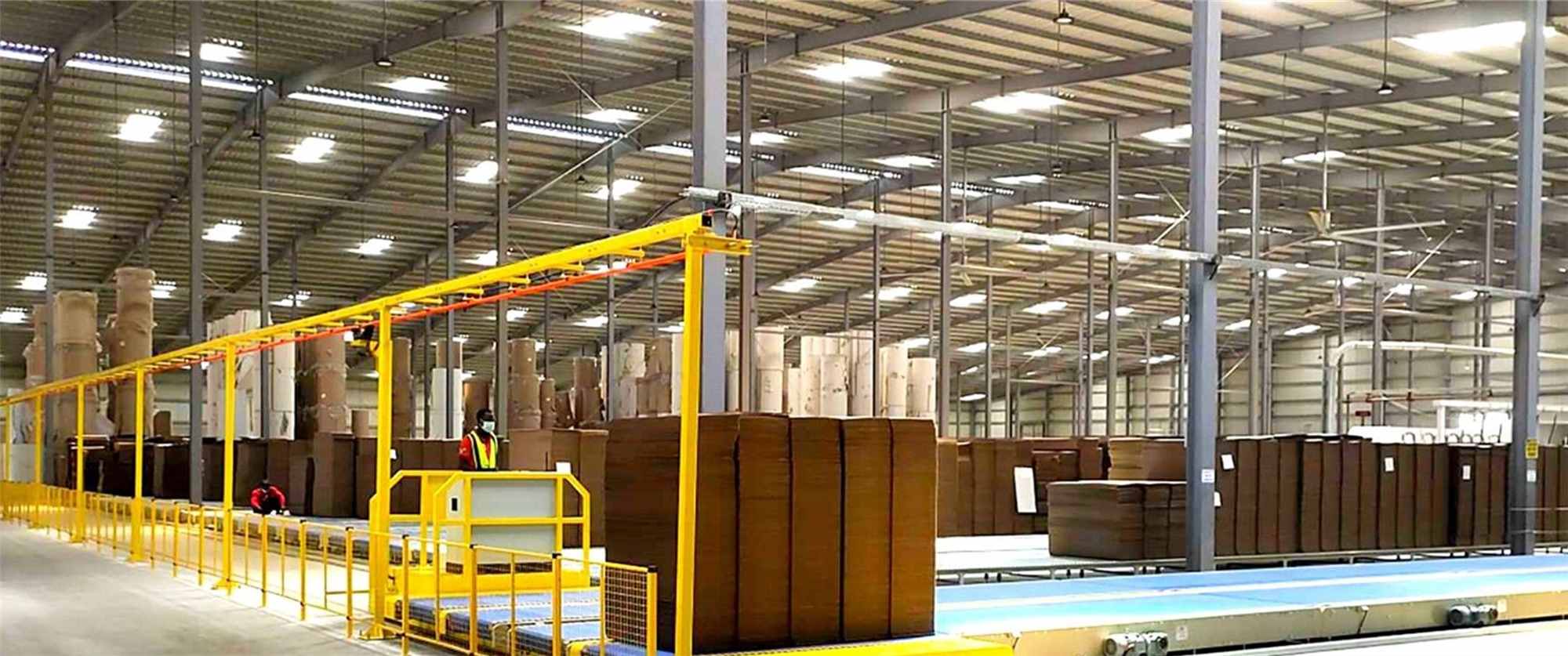

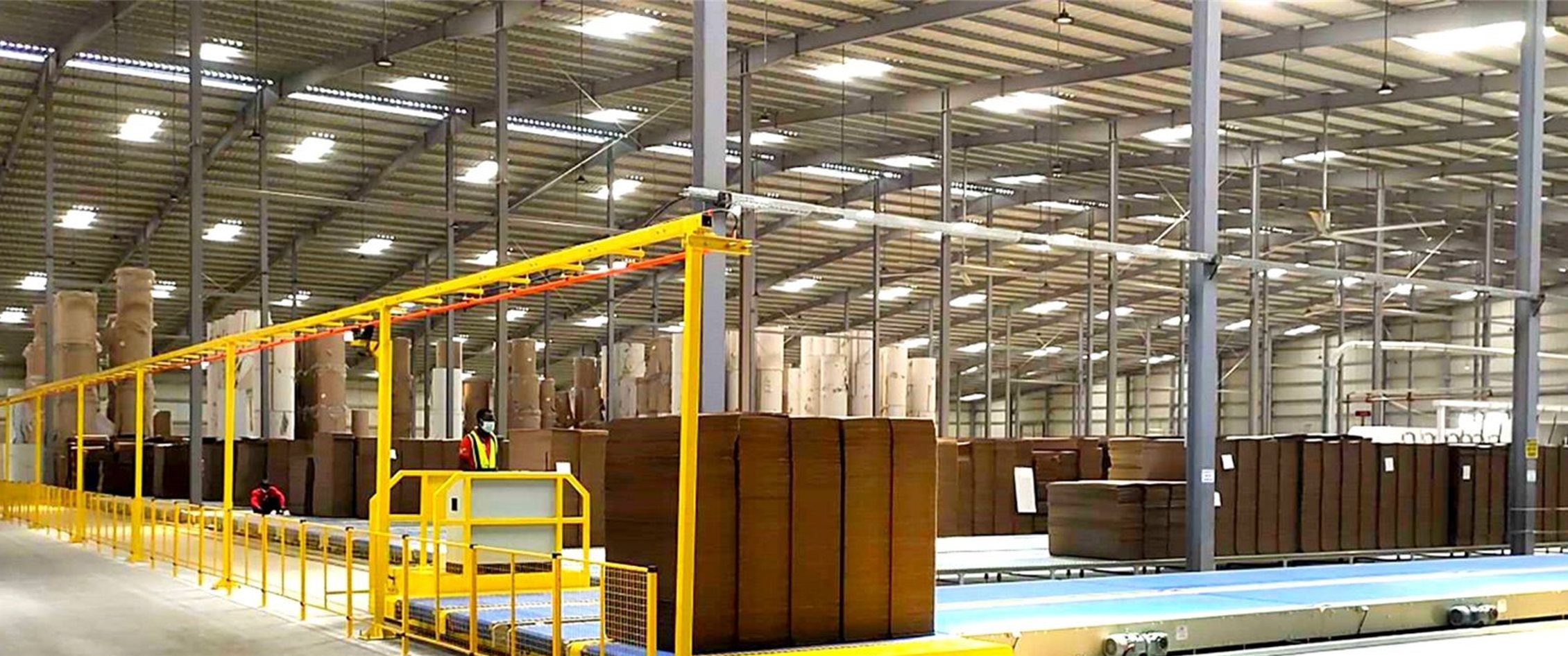

The source paper is inserted into the Roll Lifting Rack, then goes through the Heat Drying Lot to heat to adjust the humidity and tension of the paper and then into the Single Sided Corrugated Machine, the paperboard is corrugated and glued to glue together with a layer of paper on the other hand forms a 2-layer paperboard, Conveyor Bridge will receive the opposite 2-layer paperboard and pull it through the Multi-layer Thermal Drying Lot to conduct heating again, when the paperboard passes through the Binder Machine, which will apply a layer of glue to the surface of the 2-layer corrugated paper and the same bottom layer goes into the Drying Platform to bond and shape the paperboard, forming corrugated cardboard. According to the order's request, the carton goes into the Vertical Roll Forming Machine to roll and divide the paperboard size, then goes to the Sheet Cutting Machine to cut across the paperboard accurately, finish the production. Export carton boxes and then transfer them to Paper and Stacking machine as well as automatically count the number of cartons, take out the finished product.

1. Management system of carton wave production line controlled by computer:

The management system uses industrial computer systems and professional networks, forming an automated operational system with distribution management features for multiple users.
3.1 Flexible order processing features: directly import orders from the production management system, can connect to the MIS information management system, obtain information documents of orders.
3.2 Perform synchronous full-line control: perform analog control, in addition can control by push button, convenient link control of clusters together, perform full-line control pass automatically.
3.3 Paper-feed order replacement accuracy: The coordination with the automatic paper-feeder can control the paper-feed order replacement accuracy to within ± 1mm.
3.4 High level of full automation: can connect with Paper Coupling Machine, Laminating Machine, Sheet Cutting machine, Damaged Paper Cutting machine, reach a high level of automation, perform airline replacement need to stop the machine.
3.5 High reliability system: the whole line adopts static electronic equipment and industrial control panels, minimizes errors during operation, minimizes machine breakdown, shortens time inspection and repair as well as replacement.
3.6 Multi-function management function: display speed of each cluster of machine, total amount of paper used, total amount of paper prepared to use, total production area, total production length, total waste length, speed average, production time, downtime and some other production information. The above information can be printed into production reports, production efficiency analysis reports, efficiency analysis reports of each machine cluster.
1. STRENGTHENING COIL WITH HYDRAULIC
MAIN TECHNICAL PARAMETERS:
Paper roll width: 1200-2800mm
Outer diameter of roll cover: Φ1500mm.
Total power: 4kw
